Monorail Lighting is an inventive alternative to conventional track lighting. Monorail is a low or line-voltage, two-conductor rail that can be cut to custom lengths before installation. It is available in single-or two-circuit configurations, and sections may be joined together using connectors, to create longer runs. A single circuit monorail means that all fixtures and on the same electrical circuit. Whenever the fixtures are turned on, off or dimmed – they are all controlled at once. If you have for example, pendants and spot lights on your monorail system and you’d like to be able to control them separately, you’d choose a two circuit system for changeability.
Hand-bendable and highly adaptable, monorail lighting makes it easy to create an ideal configuration that will enhance the decorative appeal of any room. The flexibility of monorail lighting is one main advantage of the system. The design possibilities are numerous. Not only is the range of illumination no longer as limited, but the variety of fixtures is greater and more aesthetic. Monorail’s streamlined, refined appearance modernizes any décor. In addition, unlike track lighting fixtures which feature larger heads in order to house the transformer, monorail utilizes surface mount or remote transformers.
Types of monorail fixtures and how to choose them
At Louie Lighting, you’ll find a beautiful selection of pendants, spot heads and accents that act as functional art pieces for your monorail system. These utilize a universal connector which attaches to a standard monorail connector. Many pendants and spot light heads designed for monorail systems use LED or halogen bulbs. LEDs are more desirable due to their extremely long life spans and energy savings. You’ll be able to place more LED fixtures on a monorail system because they also operate at approximately 1/5 the wattage of halogen lamps.
Selecting a Transformer

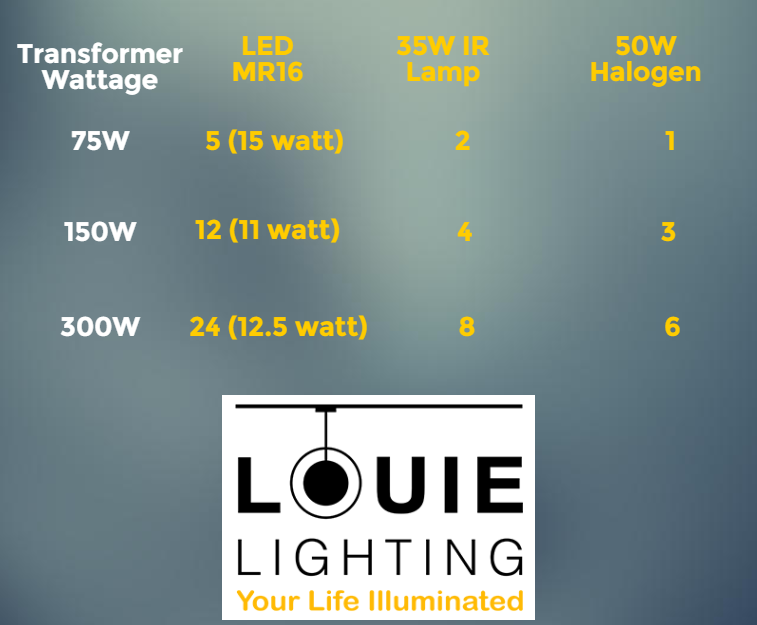

Transformer wattage will determine the total wattage of all heads/lamps connected to the system. Be cognizant that your total wattage does not exceed the wattage of the transformer. For example, a 300 watt transformer can power up to six 50 watt heads (6 x 50W = 300W), 8 fixtures with 37 watt bulbs, 15 fixtures with 20 watt bulbs, or any combination in between when using halogen lamps.
The transformer is the key to your low-voltage system. It reduces a standard 120 voltage down to 12 volts, which is safe to touch.
If you are working on a new construction project, a remote transformer provides the cleanest look for your system, but the remote transformer will need to be tucked out of sight, such as inside a cabinet, closet, or a utility room. It must be accessible and within 20′ of the system. You’ll also need a power feed canopy to bring power to the rail.
If electricity is already in place and you cannot access the area needed, a surface transformer simply mounts to a junction box. The higher the wattage you choose, the larger the surface transformer.
Determine the drop of your monorail system
A standoff is used to drop the rail from the ceiling. As a good rule of thumb, use standoff supports for every three feet of MonoRail run and at corners. You may position standoffs to cover points where rails are joined.
The field-cuttable rigid standoffs are recommended for runs with curves or those with heavier heads/lamps, such as glass pendants. Adjustable standoffs have cables that give the system a clean and elegant look. These are best used on fairly straight runs with a drop greater than 6″.
